SD35/70

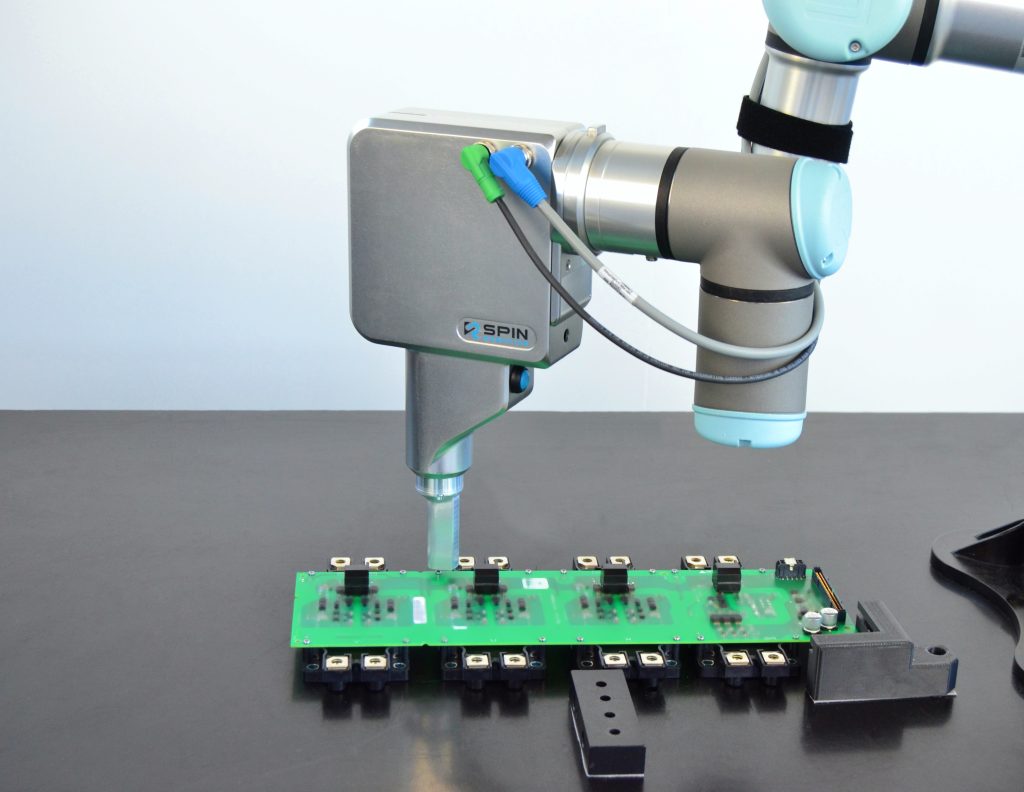

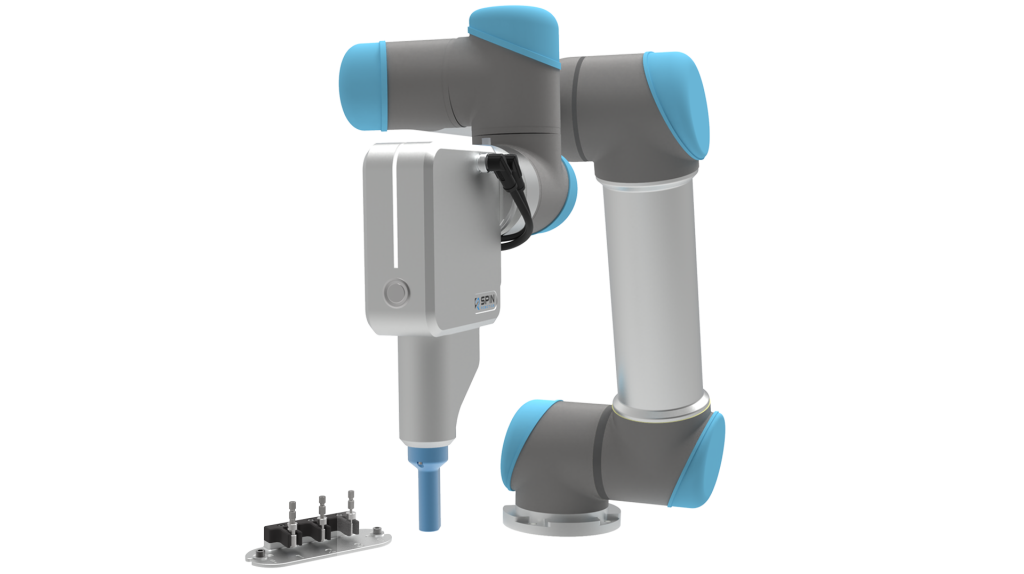

SD35 and 70 – Are all-in-one screwdriving solution. Inserts up to 6 screws in less than a minute, even in narrow and hard-to-reach spaces. The SD35 and SD70 are brushless screwdriver systems designed for use with collaborative robots for safe, easy-to-use, and consistent screw assembly for screws requiring up to 3.5 Nm and 7 Nm of tightening torque. The SD35 and SD70 has several build-in features which enhance robot integration and support collaborative work environments.
Klik og få et tilbud
Yderligere beskrivelse
The SD35 and SD70 are made for pick & place screwdriving applications. This means that screws are picked up from an automatic screw feeder positioned within the reach of the robot and screwed in at programmed insertion points.
Safety shield
The safety shield covers the bit and screw when on the move, thereby protecting the operator from rotating and sharp elements. If the tool unexpectedly runs into an object, a safety sensor stops the robot immediately. The built-in safety sensor is a performance level-d, making safe implementation easy.
Easy route programming
The supplied teach pen helps the user to set up the exact position of the screw insertion points. When the free-drive button is pressed the tool can be moved to the next position. Use the configurable button to save waypoints, start the screwdriver and more.
Automatic BitChanger (optional)
If you use different types and sizes of screws at the same workstation, we recommend the automatic bit changer that can autonomously switch between different screw bits and is to be used in combination with additional screw feeders.
Counter-bore holes and hard to reach spaces
Screws can be inserted in counter-bore holes with up to 15 mm depth from the surface.
– Versatile use
– No qualifications needed
– Safe alongside employees
– Industry 4.0 enabled
